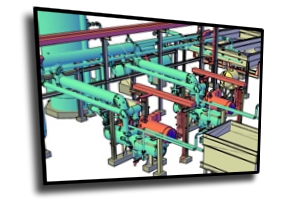

Gas Compression Station

Gas Compression Station, Godley, Texas

      GDM mapped multiple units for Energy Transfer at their Godley Compression Station. For this project GDM utilized both our HDS3000 and HDS6000 laser scanners as well as digital photography for texture mapping. All data was tied to georeferenced monumentation. Deliverables included a full 3D model in AutoCAD and 3D PDF, Isometric Drawings, and a website using the Leica TruView engine.

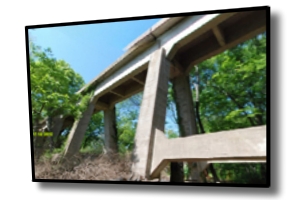

La Reunion Bridge Project, Dallas, Texas

      The historic railroad bridge and the surrounding area were scanned and photographed by GDM in order to build a base map and model for development of this area into a mixed use "artist's colony". GDM established onsite control through GPS, scanned the entire structure using the HDS6000 and tied all targets to our survey control network. Digital photography was taken for both texture mapping and the creation of QTVR panoramas from each scan position.



La Reunion Bridge
